Knowing what a tyre is made up of can really help you to make a smart choice for your car. Obviously, there are two types of tyres: radial and bias, which come to your mind. Therefore, this blog post will compare radial tyres vs. bias tyres, and their distinct features, weigh their pros and cons, and find out which one would be better for you.

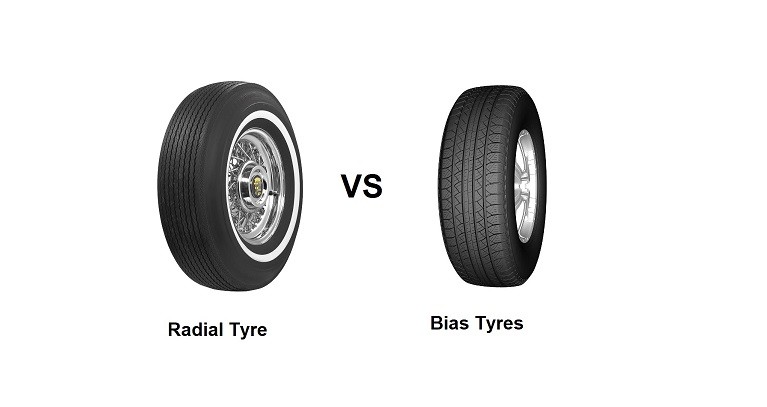

Radial Tyres vs. Bias Tyres

The major difference between radial and bias tyres is the way both are constructed. They are created by layering rubber sheets and some strengthening material such as polyester, rayon, nylon, Kevlar and fibreglass for strength and support. Every one of these layers is known as a "ply." These plies are arranged on one another in a specific pattern. Therefore, radial and bias ply tyres differ in the way these plies are laid on each other.

What Is a Bias Tyre?

A bias tyre has plies that are oriented diagonally across the tyre. The reinforcing cords are typically positioned at an angle of 30-40 degrees from the tyre's centre line. Each successive layer overlaps, thereby creating a crisscross pattern. Bias tyres do have some significant characteristics:

1. Thicker Sidewalls

Because the plies overlap, bias ply tyres have thick sidewalls with exceptional load-carrying capacities. Narrower Footprint - The design creates a relatively narrow contact patch with the road, which is beneficial for some heavy-duty, off-road applications.

2. Narrower Footprint

The design creates a relatively narrow contact patch with the road, which is beneficial for some heavy-duty, off-road applications.

3. Stiff Structure

The interlocking plies create a less flexible construction than some other tyre types. This can be beneficial when durability is important, like on trailers, construction equipment, and vintage vehicles.

While a bias tyre is known for being durable and puncture-resistant on the sidewall, that design also means that the tread area and the wall of the tyre are interdependent. It means that when the tyre is loaded, or if the tyre hits an imperfection on the road, the entire tyre mildly curves together. Thus, over time, it can result in irregular wear patterns and shorter tread life.

What Is a Radial Tyre?

A radial tyre is constructed differently from a bias tyre. In radial tyres, the reinforcing plies are laid at right angles to the direction of travel (effectively radiating out from the centre of the tyre), with steel belts (or stabilising layers) also laid underneath the tread. Here is what those design elements mean in terms of performance:

1. Flexible Sidewalls

As radial tyre sidewalls are more flexible, they deal with road imperfections more effectively, leading to a more comfortable ride.

2. Wider Footprint

Radial tyres typically have a wider contact space with the road, thereby improving traction and overall grip.

3. Independent Tread and Sidewall

Since the tread is supported by separate belts, it functions more independently of the sidewall, permitting better heat dissipation and more even wear patterns.

4. Lower Rolling Resistance

Due to the inherently better design, radial tyres waste less energy in forming when rolling, which helps with better fuel consumption.

The features that radial tyres provide help them make the best choice for passenger vehicles and light trucks, and are employed in other commercial applications. Radial tyres may be more expensive than bias ply tyres, but the advantages in longevity, function and comfort outweigh their cost.

Pros of Bias Tyres

1. Cost-Effective Production

Bias tyres typically cost less to produce, making them an easy choice for vehicles with limited budgets.

2. Robust and Durable Sidewalls

The layered ply design gives a bias tyre a longer and thicker sidewall that can support heavier loads and is less likely to get a sidewall puncture. They are used in heavy-duty applications like construction, in trailers, and for vintage vehicle owners where tyre authenticity counts.

3. Ideal for Rough Terrain

A bias tyre can cushion the impact of bumps and jolts when driving over uneven, rocky, or rough terrain. Bias tyres usually have very strong construction with little flex, maintaining their shape better when climbing over rough ground.

4. Better Load Capacity

Since bias tyres are designed for heavier than average loads without deforming, they are used where performance and long life are important (think trucks, trailers, or industrial vehicles).

Cons of Bias Tyres

1. Wear out Quicker

Due to their interconnected design, the tread and sidewall work together, and the benchmark weight that they were designed for may create overly high or limited pressure to start the wear process.

2. Higher Rolling Resistance

Due to their unique design, bias tyres also usually have more rolling resistance than radial ones, so the engine (and fuel) has to labour harder to maintain speed, hence lowering gas mileage.

3. Less Comfortable Ride

A bias tyre usually creates a stiffer ride than radial tyres because of its construction. For a vehicle that is mostly driven off-road, this stiffness may be preferable, but as a passenger vehicle less desirable. Less High-Speed Performance

Overall Bias tyres were not designed for high speeds and since the structure of the bias tyres is so rigid that the harder the bias tyre gets pushed above its design weight, the less traction and control the vehicle will have at these highway speeds, making the bias tyres less agreeable.

Pros of Radial Tyres

1. More Ride Comfort

Radial tyres have more flexible side walls, and because of this, they are better able to absorb imperfections in the road - giving the driver and passengers a much more comfortable drive.

2. Superior Traction and Handling

With a larger and more stable footprint, radial tyres have better road grip and handling. The independent operation of the tread and sidewall means the whole contact patch will effectively be used, which is very important for cornering and braking.

3. Increased Tread Life

Radial tyres distribute pressure more evenly over the tread, meaning they have less wear and tear - this is an important attribute for those looking to maintain long-term costs of tyre ownership.

4. Better Fuel Economy

Due to their lower rolling resistance, cars equipped with radial tyres usually have better fuel efficiency. Better fuel efficiency saves dollars and cuts carbon dioxide emissions.

5. Much Heat Removal

Radial tyres are designed to manage heat build-up more effectively. Since much of the time, too much heat is the primary cause of tyre failure, this promotes safety and longer tyre longevity.

Cons of Radial Tyres

1. Upfront Price is High

Radial tyres are more costly to produce, which can lead to a proportionately higher price for retail. Nonetheless, many drivers believe that their longer-term fuel and maintenance savings compensate for initial expenditures.

2. Bruise Under Inflated or Over-Inflated Tyre Pressure

The flexible sidewall of a radial tyre is more prone to developing a bulge or similar issues if it is not maintained under the correct pressure, therefore, it is significantly important to either monitor proper inflation as well as maintain that inflation level.

3. Less Rugged for Extreme Off-Road Activities

Radial tyres are great on paved roads and mild off-road action, but they will probably not provide the same level of rugged durability as a bias-ply tyre in extreme and heavy-duty off-road conditions.

Radial Tyre vs Bias Tyre: Which Tyre to Choose?

The debate of radial tyres vs bias tyres is not just a technical discussion, it's how well they work in the real world. Here are some times when each tyre type does great:

1. Everyday Passenger Vehicles

For new cars, the pick is easy. Radial tyres are the norm in today's automobile world. Their better comfort when riding, great grip, less fuel use, and longer life make them just right for daily driving and fast road conditions.

The key benefits are:

• Smoother ride over uneven surfaces

• Better handling during cornering and braking

• Smaller gas use because of less rolling drag

• Every day passenger vehicles and highways

2. For Heavy-Duty Applications and Construction Equipment

With their strong and durable sidewalls, bias tyres still find use in rigorous applications. Excellent load rating and toughness in extreme settings make bias tyres frequently used on construction trucks, trailers, and farm equipment. Though they may not have the same smooth highway ride, their ruggedness under heavy loads makes them irreplaceable for these uses.

The key benefits are:

• Great load-carrying capacity

• Superior resistance to sidewall punctures

• Greater strength under heavy, constant loads

3. For Off-Road and Specialised Racing Conditions

In specific off-road conditions or specialised racing scenarios, the debate between radial tyres vs bias tyres can become more nuanced sometimes. For example, drag racers may favour bias ply drag slicks because of the greater launch force they can provide, while others might choose radial drag tyres for their superior stability and consistent contact patch. The choice often depends on the type of racing and the specific performance characteristics required.

Conclusion

Because of their many benefits in comfort, handling, and fuel use, radial tyres have become the norm in the motor sector. Bias tyres, on the other hand, remain popular in heavy-duty applications, off-road circumstances, and vintage car restorations owing to their strong build and outstanding load-carrying ability.

Choose a radial tyre for highway or daily driving if you want a smooth ride, better fuel efficiency, and longer tread life. And, if you want one that can handle heavy loads, resist sidewall punctures, and deliver a more “authentic” look for vintage or off-road vehicles, a bias tyre might be the way to go.

Also, in the UAE, you can visit your nearest car tyre dealers to get expert guidance on radial tyres vs bias tyres, tyre replacement, tyre rotation and tyre repair.

Here, you will find first-grade tyres from multiple brands at a cheaper price. Other than this, you can get the best offers and deals on purchasing tyres.

So, next time you are shopping for tyres, take a moment to re-think whether a radial tyre vs a bias tyre is the best fit for your vehicle. Happy driving!
